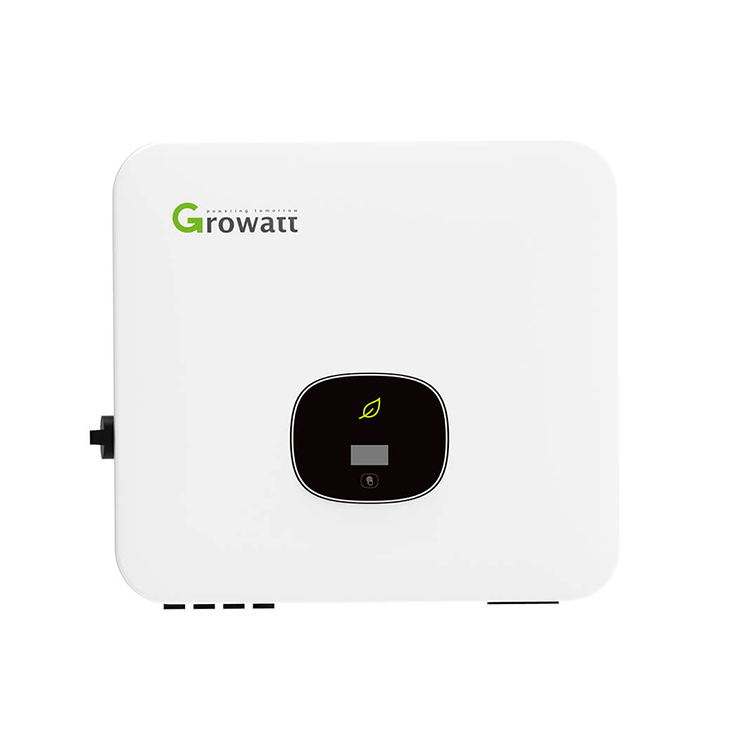

The Growatt MOD 3-15KTL3-X is a three-phase inverter designed for commercial and industrial PV systems. This inverter has multiple MPPT inputs, ensuring optimal efficiency regardless of the shading and orientation of the solar panels.

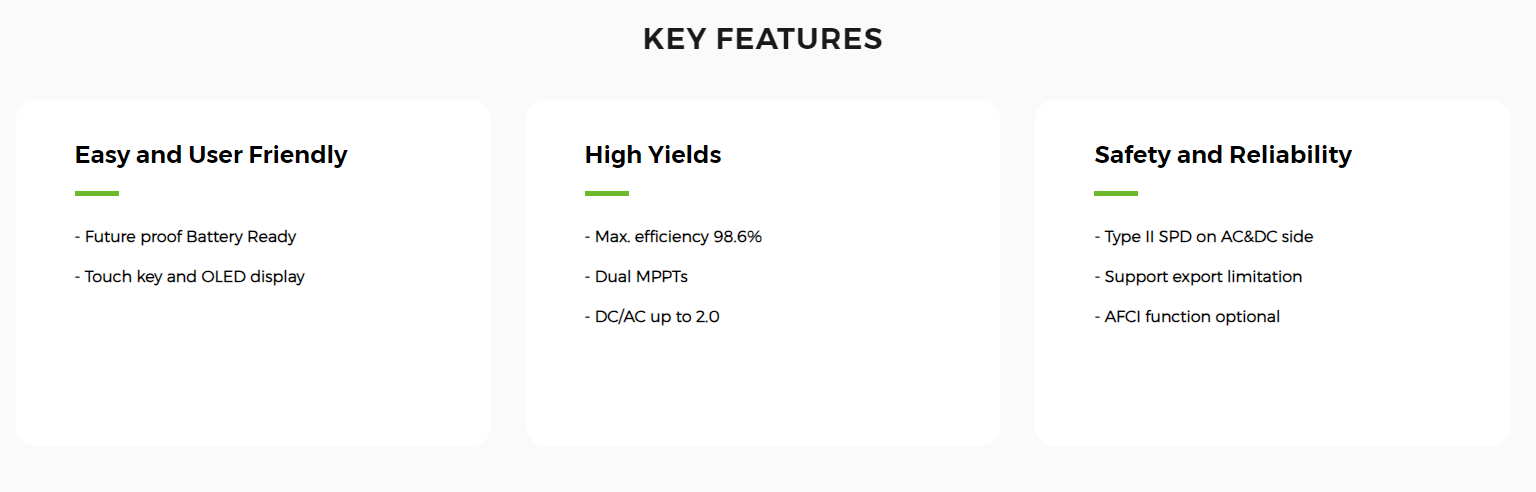

Features of the Growatt MOD 3-15KTL3-X inverter
Some of the key features of the Growatt MOD 3-15KTL3-X inverter are:
Flexible deployment: The inverter has a modular design, making it easy to expand the configuration of solar panels to meet user requirements.
Safe and reliable: The inverter has a series of built-in safety features, including protection against overvoltage, undervoltage, and overheating. It also has a built-in DC switch that allows the installer to safely perform maintenance.
Integrated string fuses: The inverter has built-in string fuses that protect the solar panels from excessive current and reduce the risk of fire.
High efficiency: The inverter has a maximum efficiency of 98.6%. This percentage indicates the amount of power that can actually be used from the amount of power generated by the solar panels.
Multi-MPPT design: The inverter has multiple MPPT inputs (Maximum Power Point Tracking), allowing it to track the maximum power point of multiple strings of solar panels simultaneously. This ensures optimal energy output from the solar panels.
Connectivity: The inverter can be connected to a monitoring system via Wi-Fi or Ethernet, allowing the entire solar panel system to be remotely read and managed.

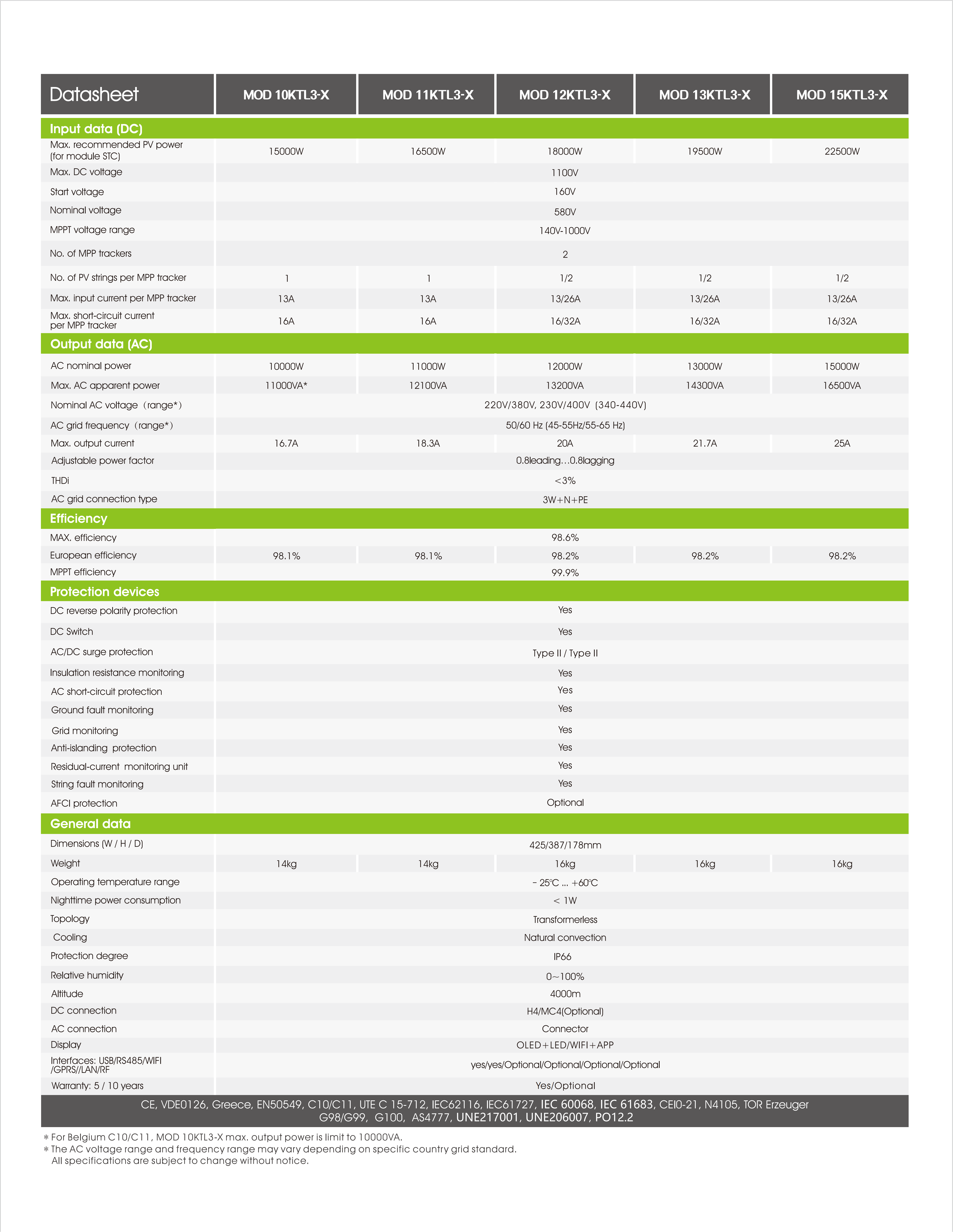

Datasheet | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X |
Input data (DC) |
Mox.recommended PV power
(for module STC) | 15000W | 16500W | 18000W | 19500W | 22500W |
Max.DC voitoge | 1100V |
Start volfoge | 160V |
Nominal voltoge | 580V |
MPPT woltoge range | 140V-1000V |
No of MPP trackers | 2 |
No of PV stings per MPP trocker | 1 | 1 | 1/2 | 1/2 | 1/2 |
Max.input current per MPP tacker | 13A | 13A | 13/26A | 13/26A | 13/26A |
Max.short-circuit current
per MPP tracker | 16A | 16A | 16/32A | 16/32A | 16/32A |
Output data (AC) |
AC nominal power | 10000W | 11000W | 12000w | 13000W | 15000W |
Max.AC apparent power | 11000VA* | 12100VA | 13200VA | 14300VA | 16500VA |
Nominal AC voltoge(range*) | 220V/380V, 230V/400V (340-440V) |
AC gid frequency(range*) | 50/60 Hz(45-55Hz/55-65Hz) |
Max.output curent | 16.7A | 18.3A | 20A | 21.7A | 25A |
Adjustoble power foctor |
| 0.8leodng...0.8logging |
|
|
THDi | <3% |
AC gnd connection type | 3W+N+PE |
Efficiency |
MAX.efficiency | 98.6% |
European efliciency
MPPT efficiency | 98.10% | 98.10% | 98.20% | 98.20% | 98.20% |
| 99.9% |
Protection devices |
DC reverse polanity protection | Yes |
DC Switch | Yes |
AC/DC surge protection | Typel/Typell |
Insulaflion resistance monitoring | Yes |
AC short-circuit protection | Yes |
Ground foult monitoing | Yes |
Grid monitoning | Yes |
Anti-slandng protection | Yes |
Residual-cument monitoring unit | Yes |
String foult monitoring | Yes |
AFCI protection | Optional |
General data |
Dimensions (W/H/D) | 425/387/178mm |
Weight | 14kg | 14kg | 16kg | 16kg | 16kg |
Operaling temperature range | -25℃...+60℃ |
Nghtime power consumpfion
Topology | <1W |
| Transfomenless |
Cooling | Naturdl convection |
Protection degree | P66 |
Relative humidiy | 0~100% |
Altiude | 4000m |
DC connecion | H4/MC4[Optiond] |
AC connection | Connector |
Display
Interfaces:USB/RS485WIFI
/GPRS/LAN/RF | OLED+LED/WIFI+APP |
| yesyes/OptionaVOptionaVOptional/Optional |
Wamanty:5/10 years | Yes/Optional |
CE,VDE0126,Greece,EN50549.C10/C11,UIEC15-712IEC62116.IEC61727.IEC 60068.IEC 61683.CEIO-21,N4105,TOR Erzeuger G98/G99,G100,AS4777,UNE217001,UNE206007,PO12.2 |
