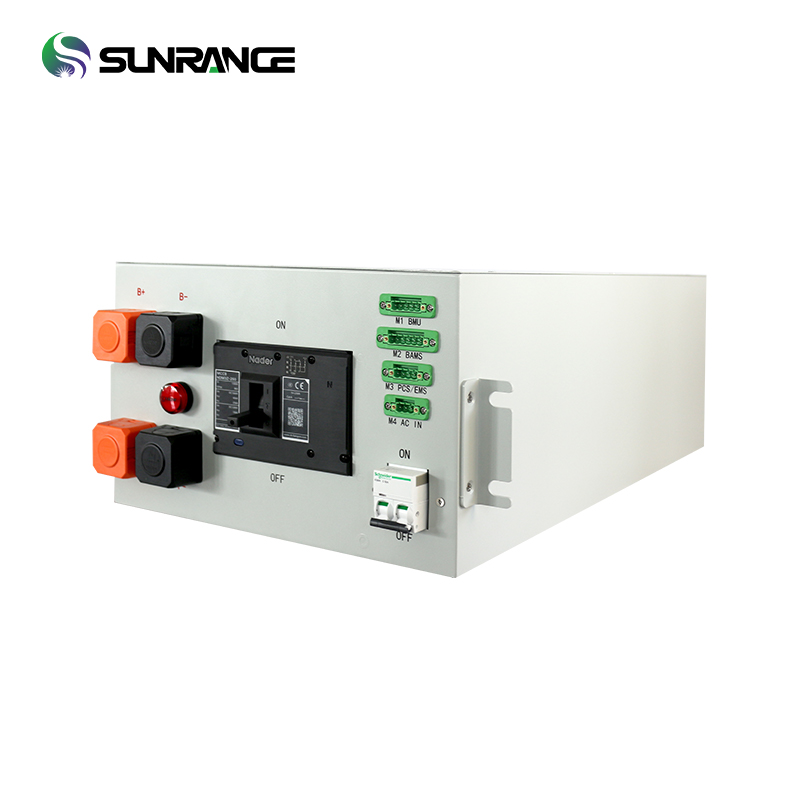

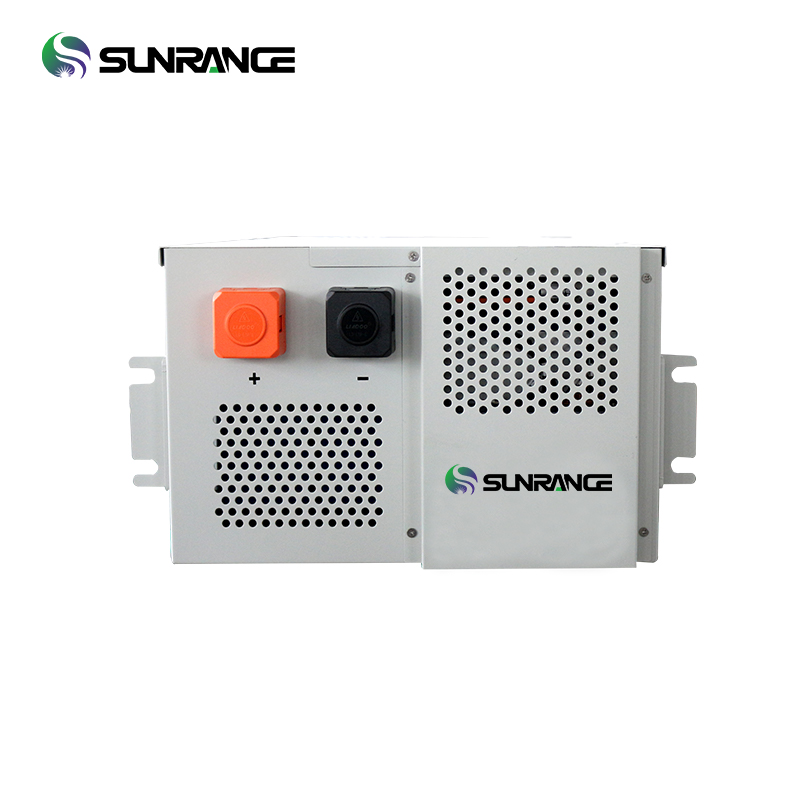

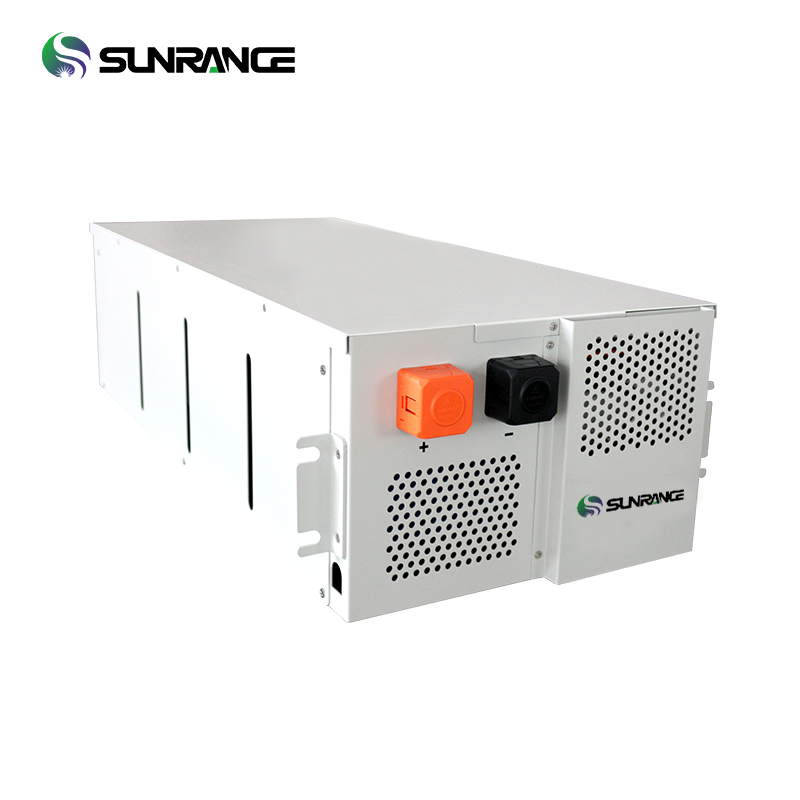

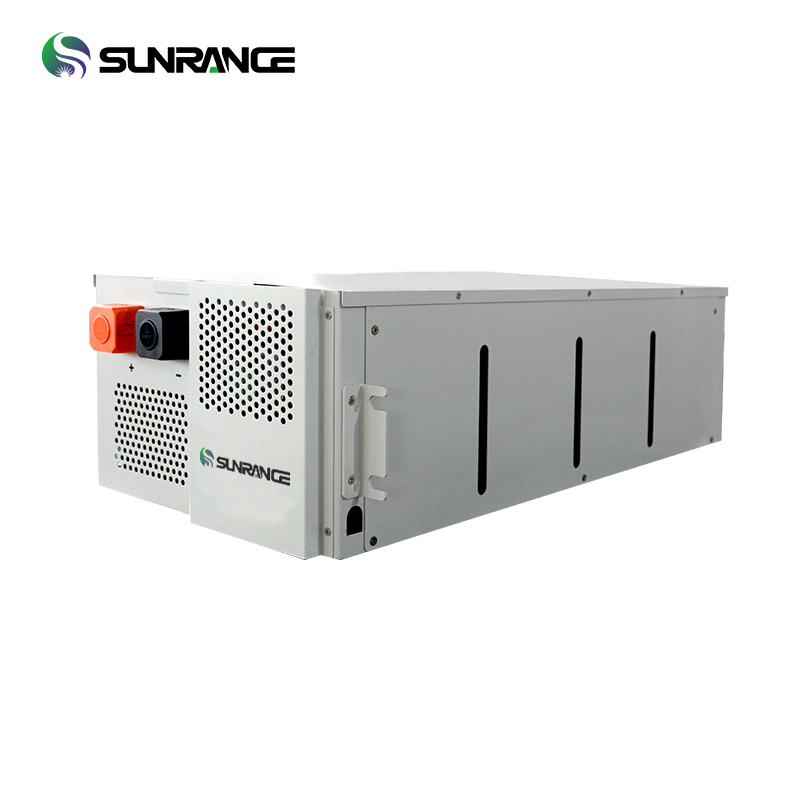

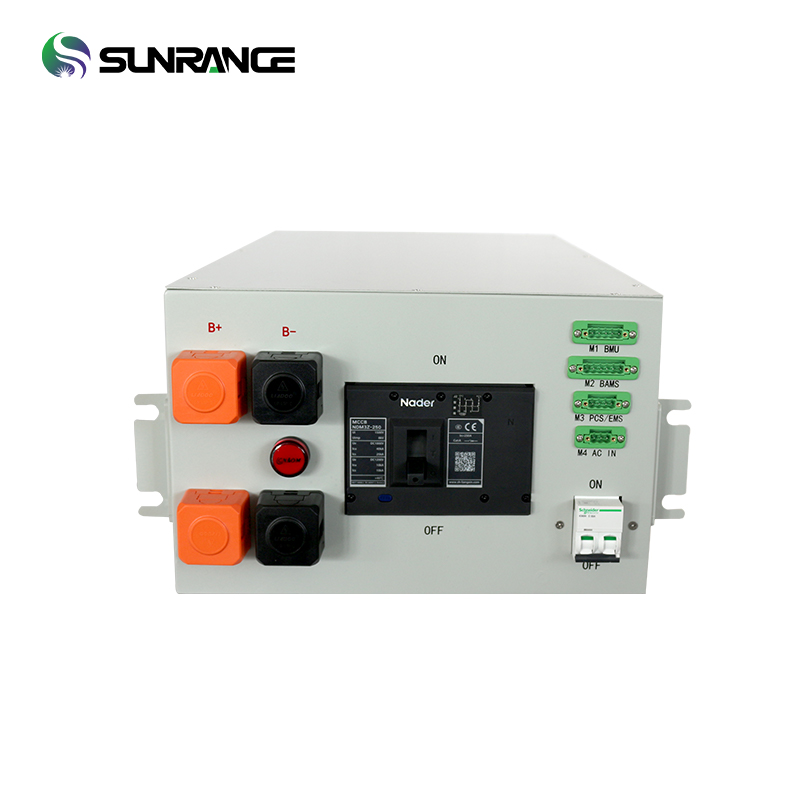

The SR51.2V280AH-H ithium-ion system ofers reliable backup power for commercialindustrial use, enabling loadbalancing, peak shaving, andrenewable energy stability. With high integraion, long life, and wide temp range.its modular 14.336Wh modules (15-seres max) scale capacity from 43 to 215.04kWh for flexible storage.
Module | SR51.2V280AH-H |
Basic Parameters |
Capacity(kWh) | 5.12 |
Nominal Voltage(Vdc) | 51.2 |
Nominal Capacity(AH) | 280 |
Voltage Range(Vdc) | 44.8~56.8 |
Depth of Discharge | 80% |
Dimension(W*D*H,mm) | 885*434*238.2(±5) |
Design Life | 15+years(25℃) |
Cycle Life | >6000(25℃) |
Communication | CANBUSModbus RTU/TCP/IP |
Protection Class | IP20 |
Weight(kg) | 108kg±3kg |
Operation Temperature | 0~50℃ |
Storage Temperature | -20~60℃ |
Product Certificate | MSDS&UN38.3 |
Battery Type : | Lithium Iron Phosphate |
Module energy: | 14.336KWH |
Module Normal Voltage: | 51.2V |
Module Capacity: | 280AH |
Battery Module Qty In Series (Optional): | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
System Normal Voltage:(V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 |
System normal capacity:(AH) | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 |
System Capacity:(KWH) | 43.008 | 57.344 | 71.68 | 86.016 | 100.352 | 114.688 | 129.024 | 143.36 | 157.696 | 172.032 | 186.368 | 200.704 | 215.04 |
