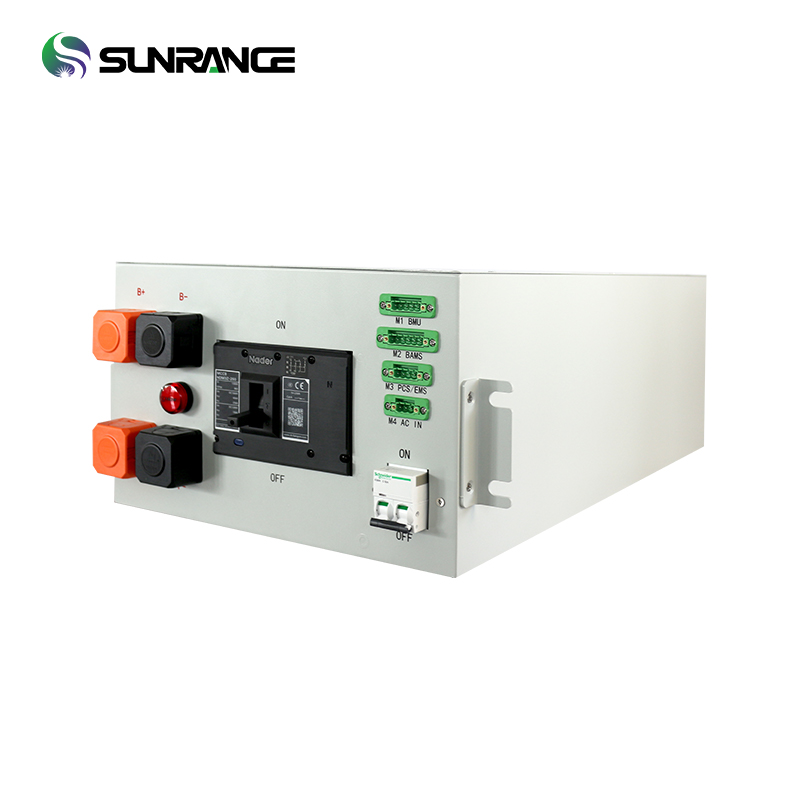

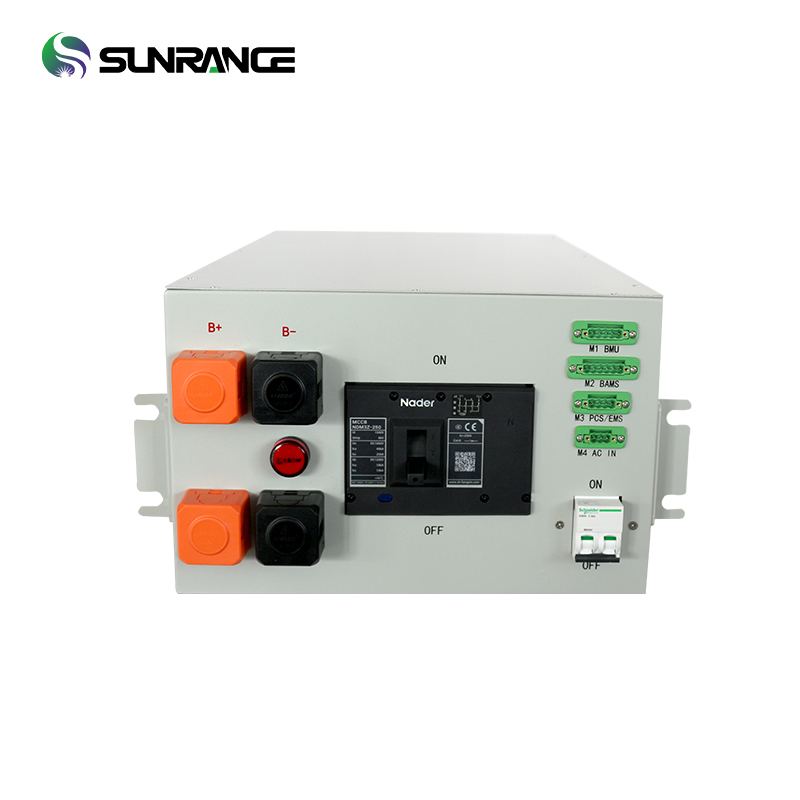

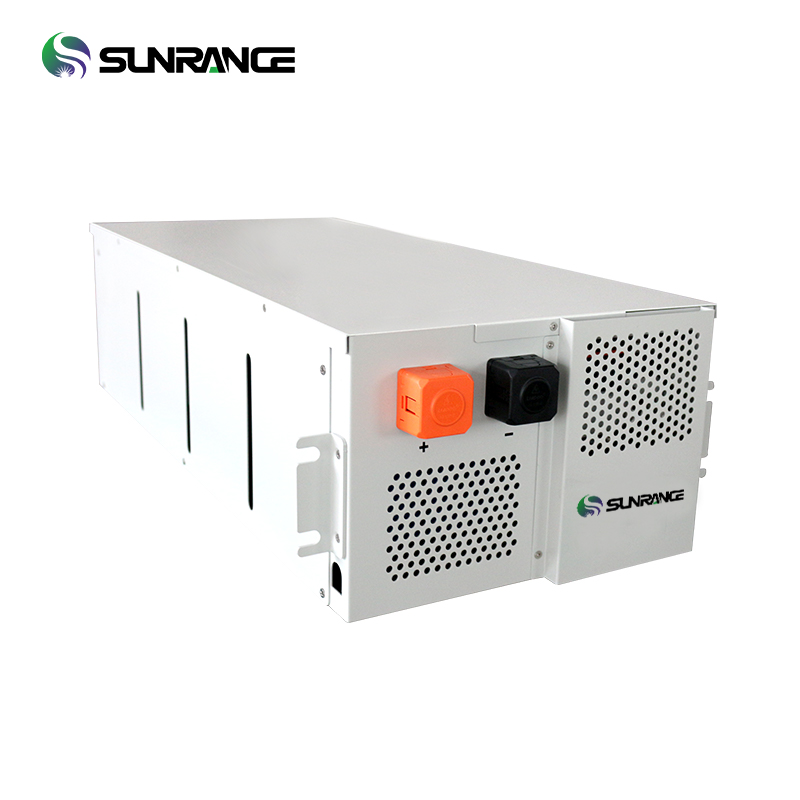

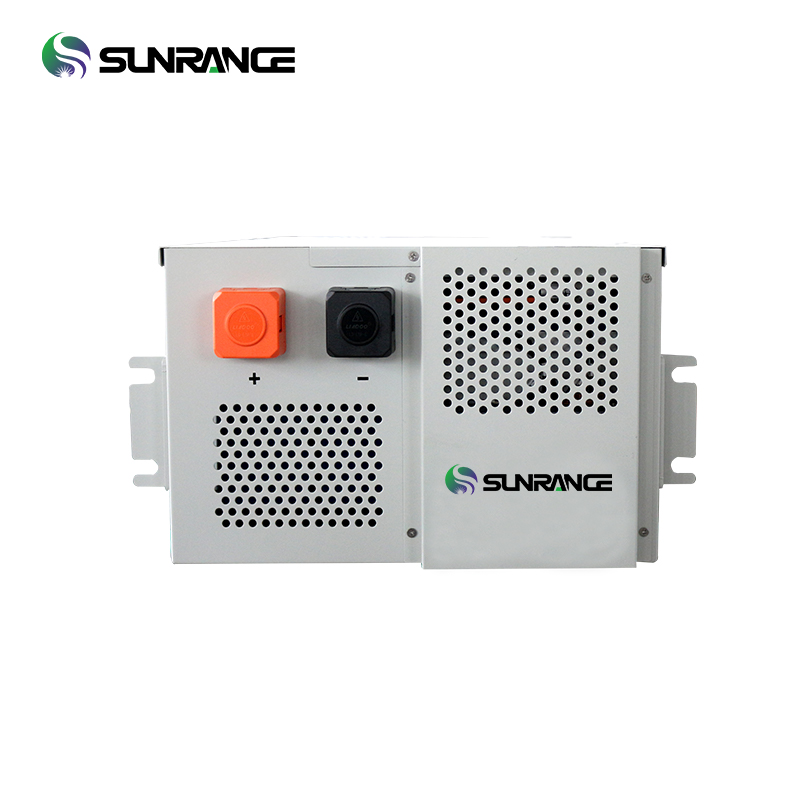

The SR51.2V100AH-H ithium-ion system ofers reliable backup power for commercialindustrial use, enabling loadbalancing, peak shaving, andrenewable energy stability. With high integraion, long life, and wide temp range.its modular 5.12Wh modules (15-seres max) scale capacity from15.36 to 76.8kWh for flexible storage.
| Module | SR51.2V100AH-H |
| Basic Parameters |
| Capacity(kWh) | 5.12 |
| Nominal Voltage(Vdc) | 51.2 |
| Nominal Capacity(AH) | 100 |
| Voltage Range(Vdc) | 44.8~57.6 |
| Depth of Discharge | 80% |
| Dimension(W*D*H,mm) | 440*442*179 |
| Design Life | 15+years(25℃) |
| Cycle Life | >6000(25℃) |
| Communication | CANBUSModbus RTU/TCP/IP |
| Protection Class | IP20 |
| Weight(kg) | 48 |
| Operation Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Product Certificate | MSDS&UN38.3 |
Battery Type : | Lithium Iron Phosphate |
Module energy: | 5.12KWH |
Module Normal Voltage: | 51.2V |
Module Capacity: | 100AH |
Battery Module Qty In Series (Optional): | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
System Normal Voltage: (V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 |
System normal capacity: (AH) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
System Capacity: (KWH) | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 | 66.56 | 71.68 | 76.8 |
