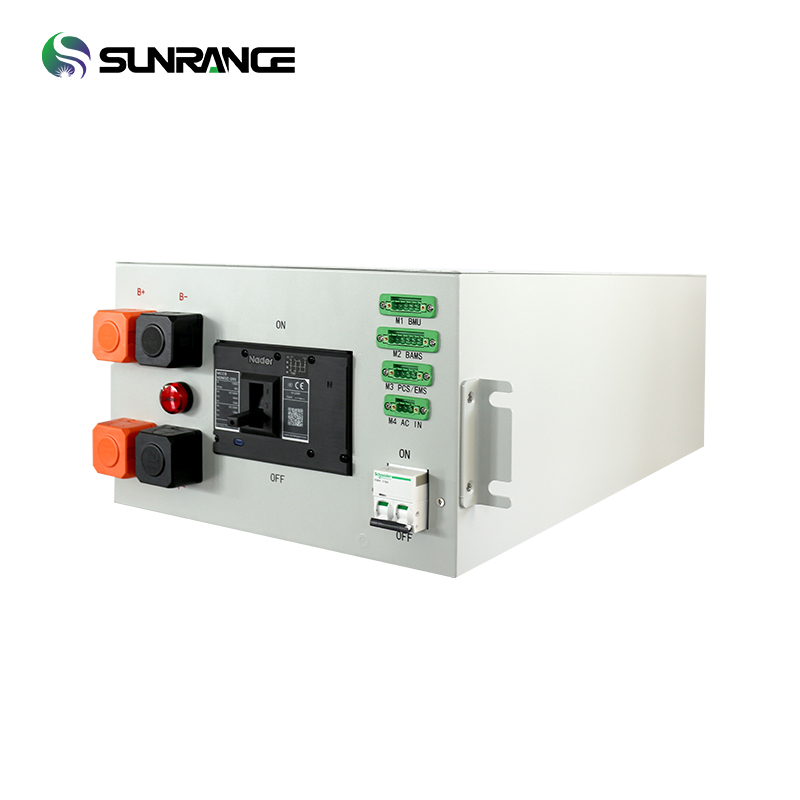

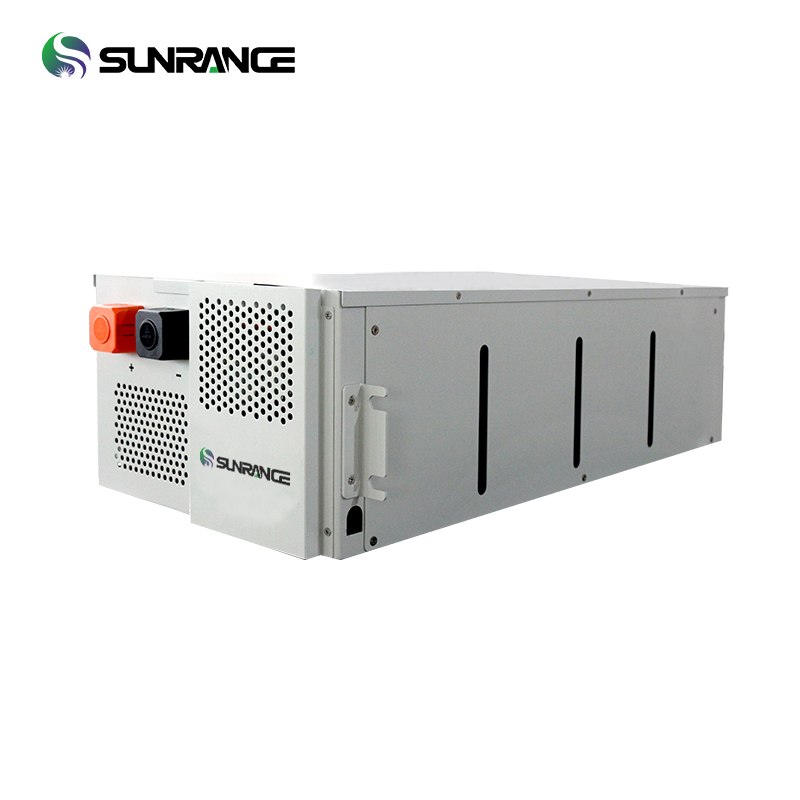

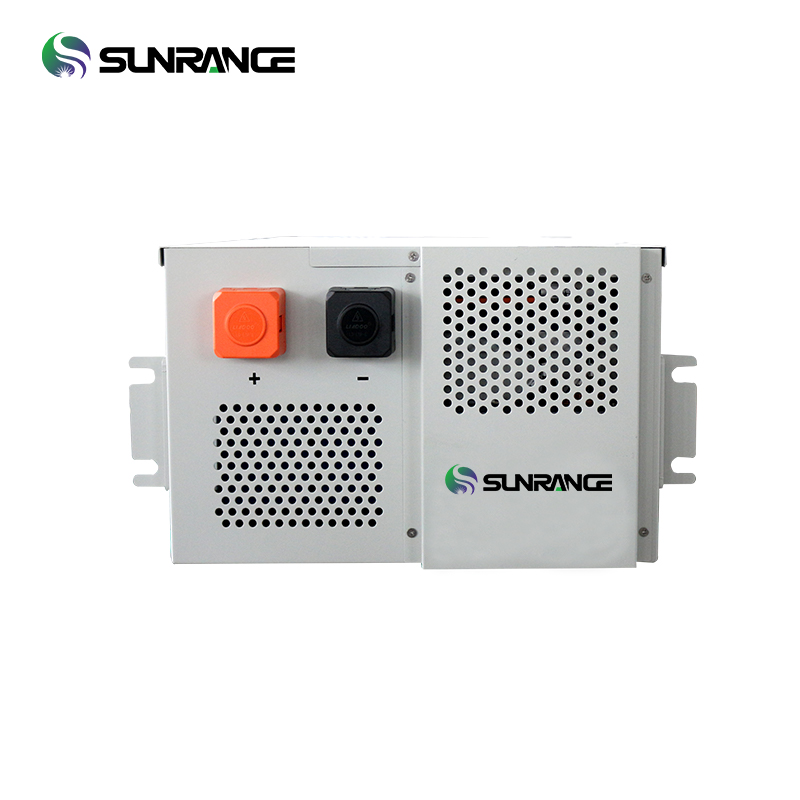

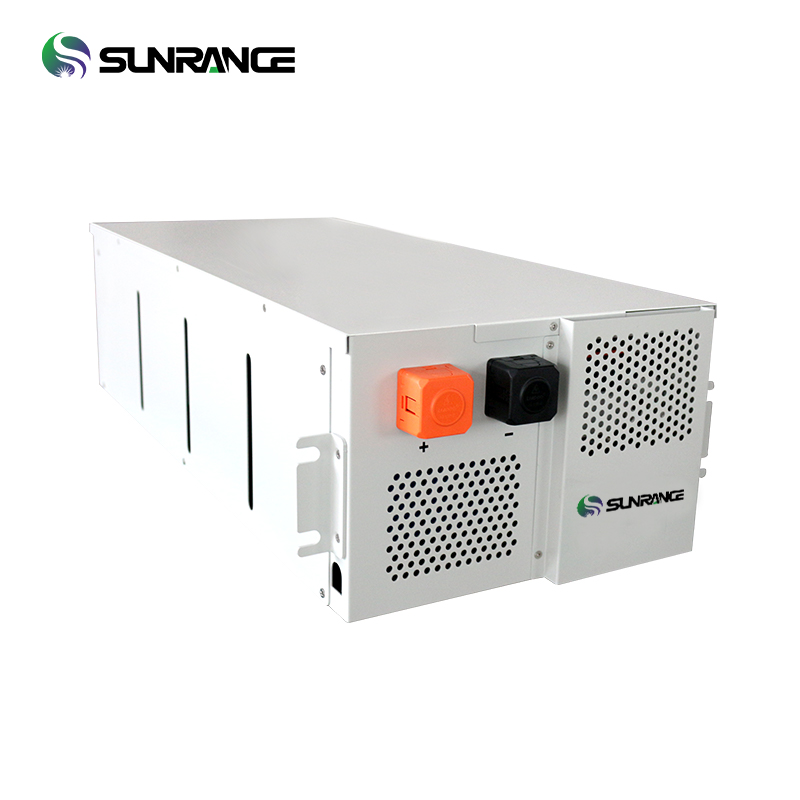

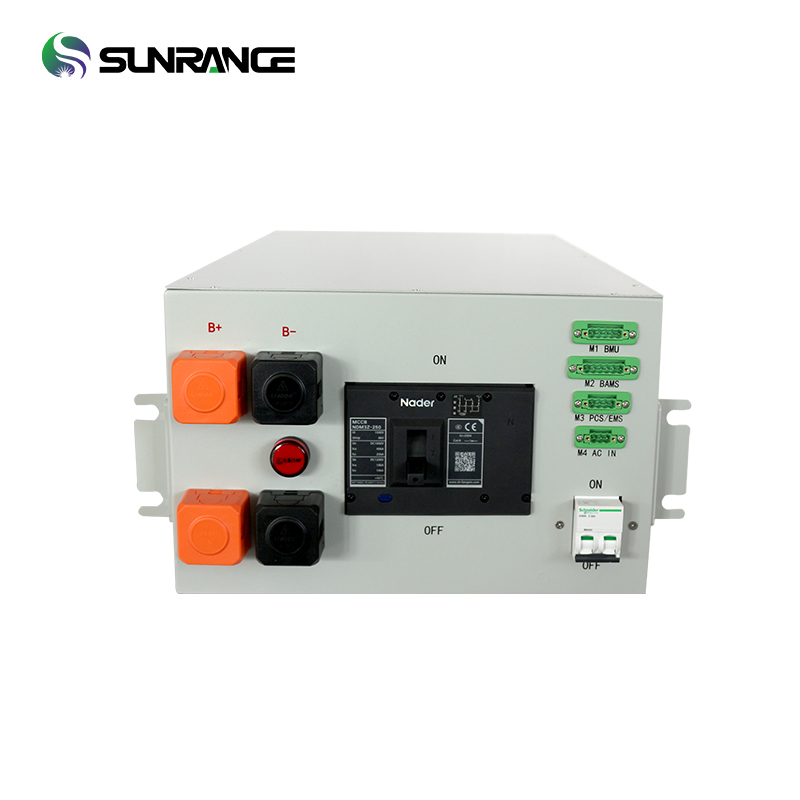

The SR51.2V314AH-H thium ion system ofers reliable backup power for commercialindustrial use, enabling loadbalancing, peak shaving.andrenewable energy stability. With high integraion, long life, and wide temp range.its modular 16.076Wh modules (15-seres max) scale capacity from48.23 to 241.15kWh for flexible storage.
Module | SR51.2V314AH-H |
Basic Parameters |
Capacity(kWh) | 5.12 |
Nominal Voltage(Vdc) | 51.2 |
Nominal Capacity(AH) | 314 |
Voltage Range(Vdc) | 44.8~56.8 |
Depth of Discharge | 80% |
Dimension(W*D*H,mm) | 885*434*238.2(±5) |
Design Life | 15+years(25℃) |
Cycle Life | >6000(25℃) |
Communication | CANBUSModbus RTU/TCP/IP |
Protection Class | IP20 |
Weight(kg) | 110kg±3kg |
Operation Temperature | 0~50℃ |
Storage Temperature | -20~60℃ |
Product Certificate | MSDS&UN38.3 |
Battery Type : | Lithium Iron Phosphate |
Module energy: | 16.0768KWH |
Module Normal Voltage: | 51.2V |
Module Capacity: | 280AH |
Battery Module Qty In Series (Optional): | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
System Normal Voltage:(V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 |
System normal capacity:(AH) | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 |
System Capacity:(KWH) | 48.23 | 64.3 | 80.38 | 96.46 | 112.53 | 144.69 | 144.69 | 160.76 | 176.84 | 192.92 | 208.99 | 225.07 | 241.15 |
