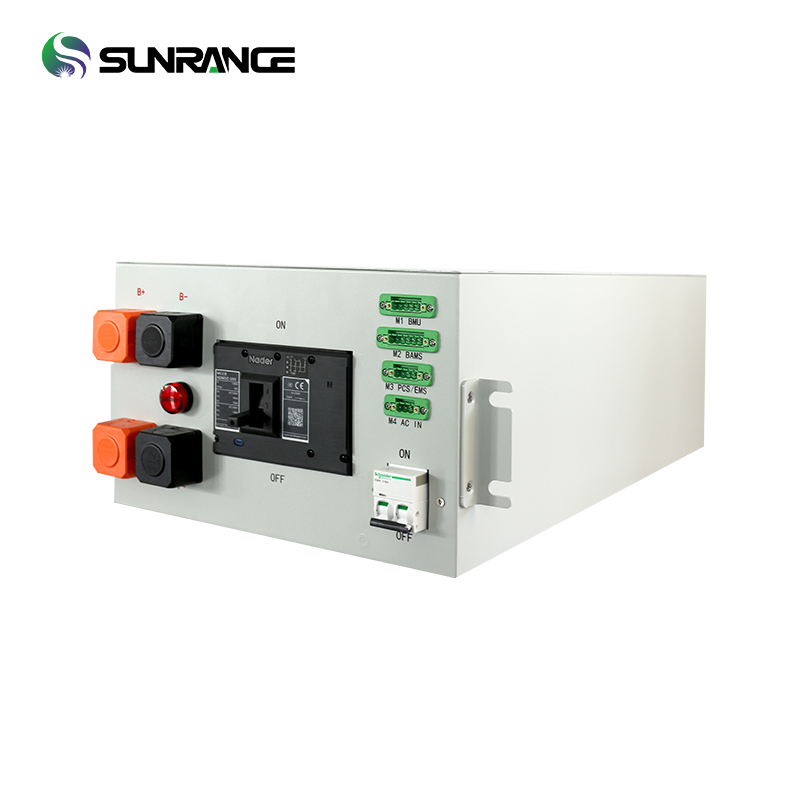

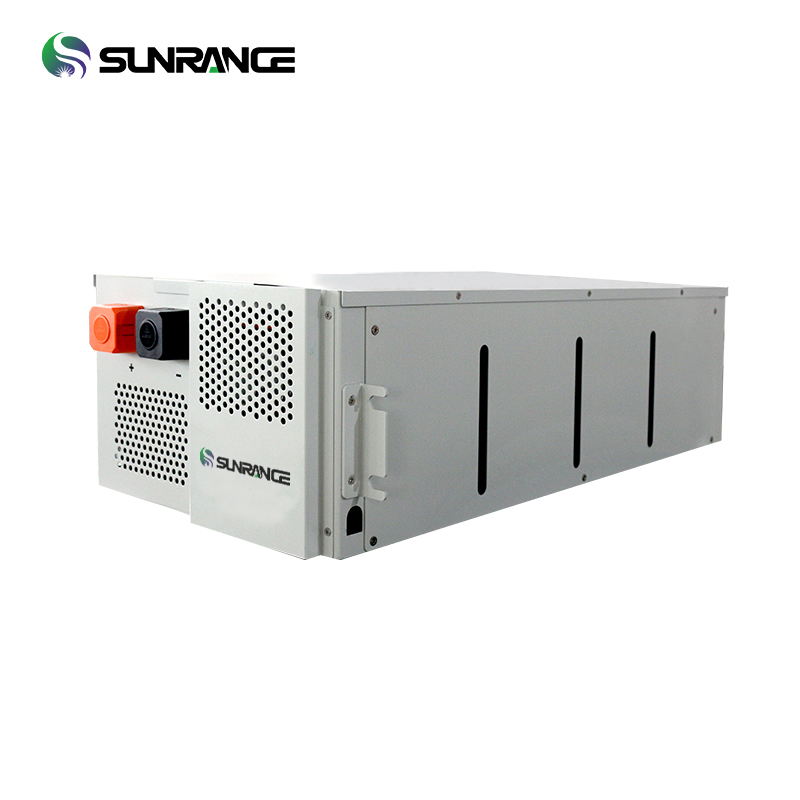

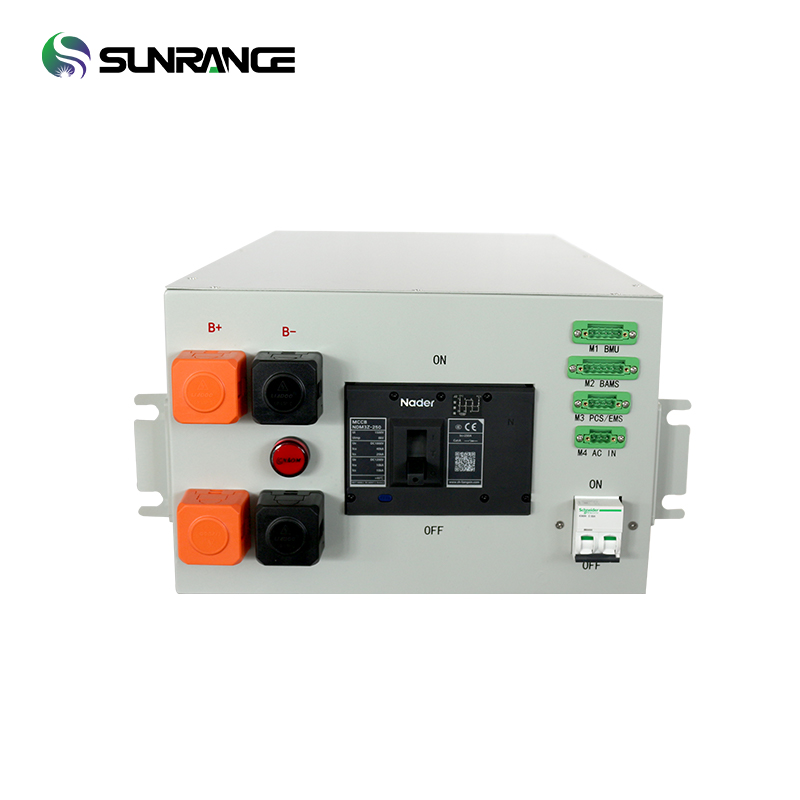

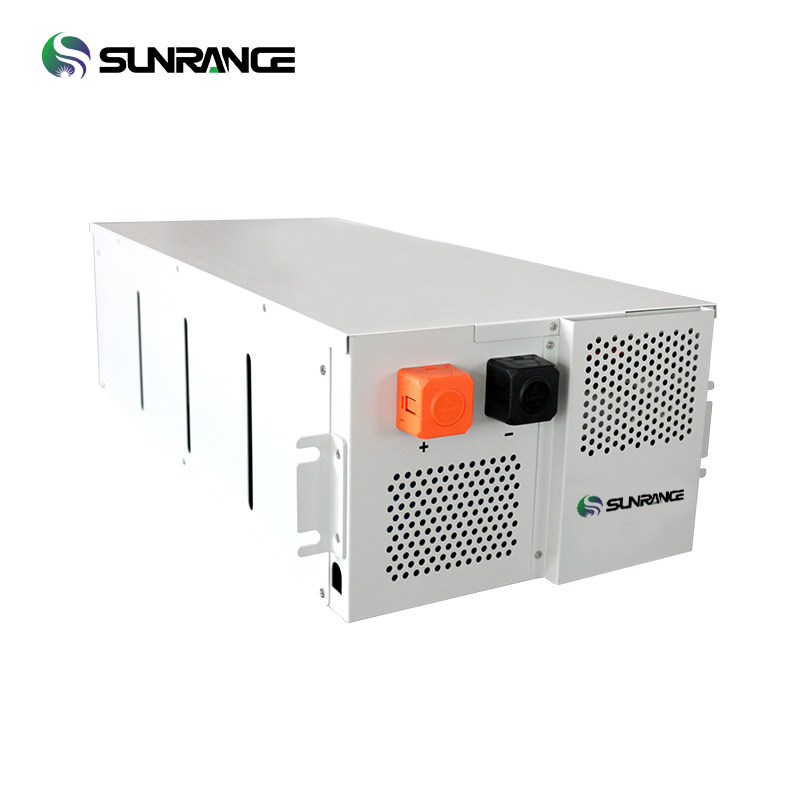

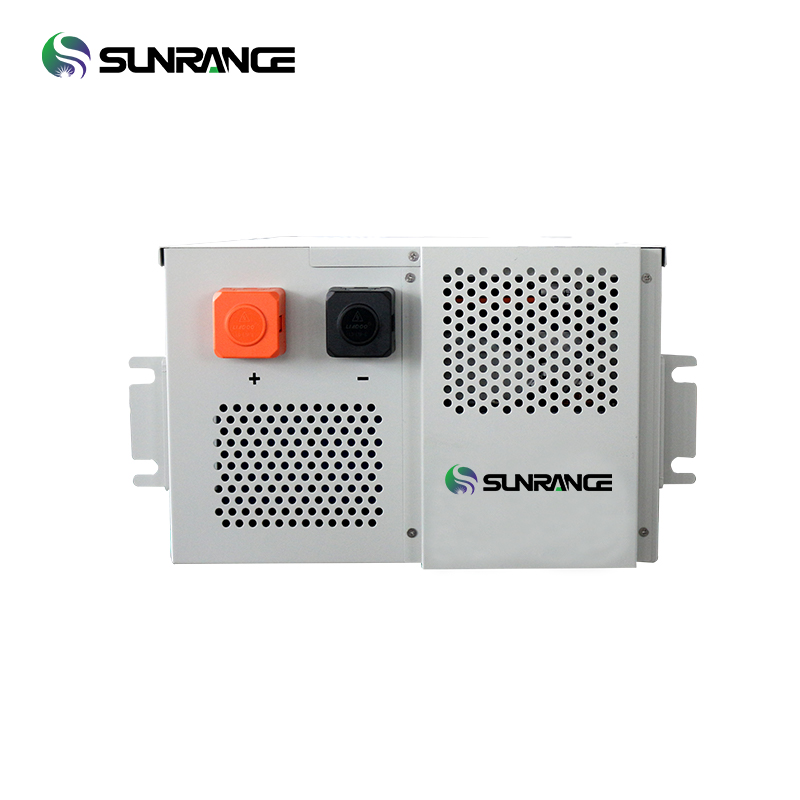

The SR25.6V200AH-H lithium-ion system offers reliable backup power for commercial/industrial use, enabling loadbalancing, peak shaving, and renewable energy stability. With high integration, long life, and wide temp range.its modular 5.12Wh modules (15-series max) scale capacity from 35.84 to 76.8kWh for flexible storage.
Module | SR25.6V200AH-H |
Basic Parameters |
Capacity(kWh) | 5.12 |
Nominal Voltage(Vdc) | 25.6 |
Nominal Capacity(AH) | 200 |
Voltage Range(Vdc) | 21.6~28.8 |
Depth of Discharge | 80% |
Dimension(W*D*H,mm) | 440*442*179 |
Design Life | 15+years(25℃) |
Cycle Life | >6000(25℃) |
Communication | CANBUSModbus RTU/TCP/IP |
Protection Class | IP20 |
Weight(kg) | 48 |
Operation Temperature | 0~50℃ |
Storage Temperature | -20~60℃ |
Product Certificate | MSDS&UN38.3 |
Battery Type : | Lithium Iron Phosphate |
Module energy: | 5.12KWH |
Module Normal Voltage: | 25.6V |
Module Capacity: | 200AH |
Battery Module Qty In Series (Optional): | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
System Normal Voltage: | 179.2V | 204.8V | 230.4V | 256V | 281.6V | 307.2V | 332.8V | 358.4V | 384V |
System normal capacity: | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH |
System Capacity: | 35.84KWH | 40.96KWH | 46.08KWH | 51.2KWH | 56.32KWH | 61.44KWH | 66.56KWH | 71.68KWH | 76.8KWH |
