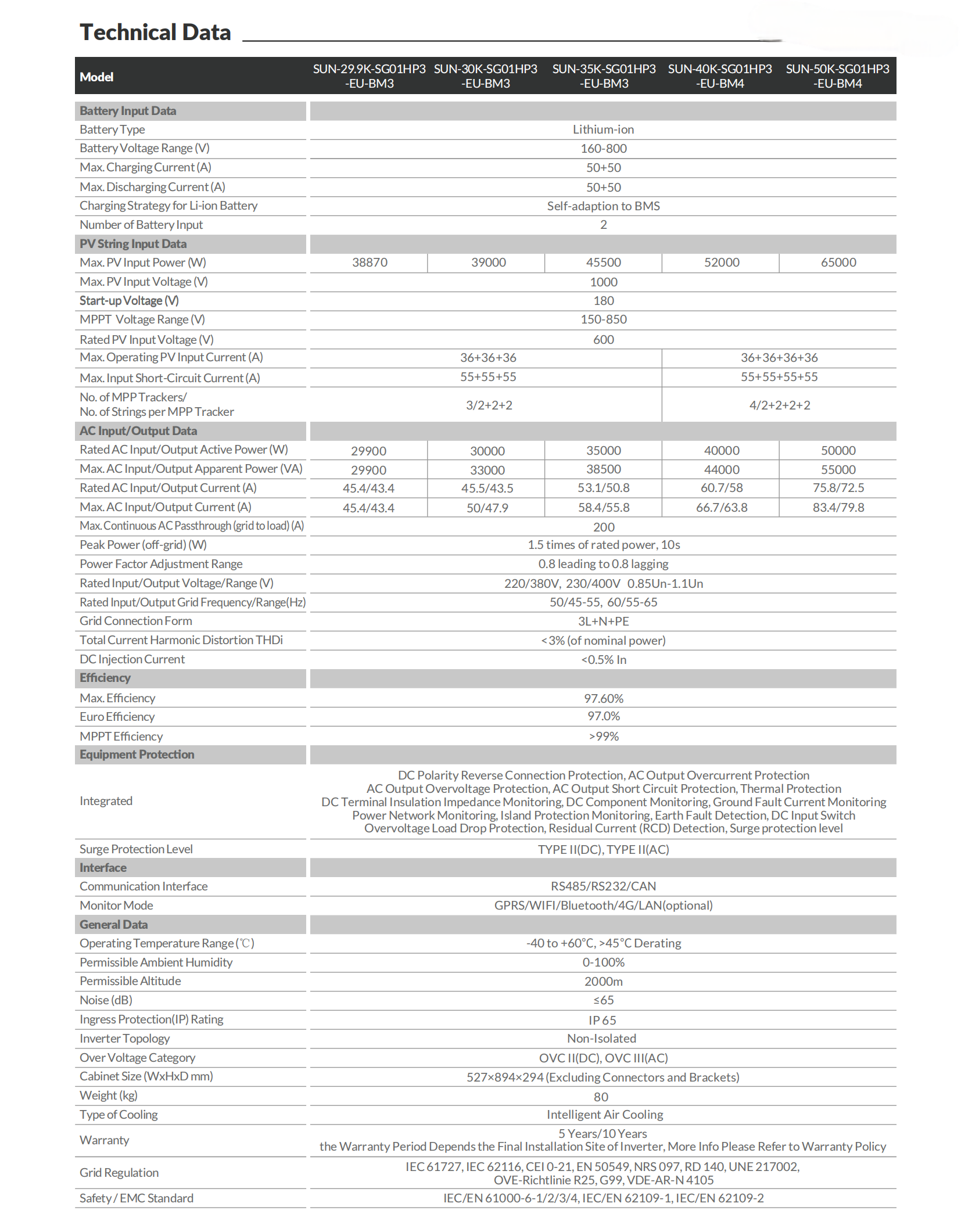

Model | SUN-29.9K-
SG01HP3-EU-BM3 | SUN-30K-SG01HP3
-EU-BM3 | SUN-35K-SG01HP3
-EU-BM3 | SUN-40K-SG01HP3
-EU-BM4 | SUN-50K-SG01HP3
-EU-BM4 |
Battery Input Data |
Battery Type | Lithium-ion |
Battery Voltage Range(V) | 160-800 |
Max.Charging Current(A) | 50+50 |
Max.Discharging Current(A) | 50+50 |
Charging Strategy for Li-ion Battery | Self-adaption to BMS |
Number of battery input | 2 |
PV String Input Data |
Max.PV Access Power(W) | 59800 | 60000 | 70000 | 80000 | 100000 |
Max DC Input Power(W) | 47840 | 48000 | 56000 | 64000 | 80000 |
Max DC Input Voltage(V) | 1000 |
Start-up Voltage(V) | 180 |
MPPT Voltage Range(V) | 150-850 |
Rated DC Input Voltage(V) | 600 |
Max Input Short-Circuit Current(A) | 55+55+55 | 55+55+55+55 |
Max Operating PV Input Current(A) | 36+36+36 | 36+36+36+36 |
No.of MPP Trackers/No.of String Per
MPP Tracker | 3/2+2+2 | 4/2+2+2+2 |
AC Input/Output Data |
Rated AC Input/Output Active Power
(W) | 29900 | 30000 | 35000 | 40000 | 50000 |
Max AC Input/Output Apparent Power
(VA) | 29900 | 33000 | 38500 | 44000 | 55000 |
Peak Power(off-grid)(W) | 1.5 times of rated power,10s |
Rated AC Input/Output Current(A) | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58.0 | 75.8/72.5 |
Max AC Input/Output Current(A) | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 |
Max Continuous AC Passthrough (grid
to load)(A) | 200 |
Rated Input/Output Voltage/Range(V) | 220/380V,230/400V 0.85Un-1.1Un |
Grid Connection Form | 3L+N+PE |
Rated Input/Output Grid
Frequency/Range | 50/45-55,60/55-65 |
Power Factor Adjustment Range | 0.8 leading-0.8 lagging |
Total Current Harmonic Distortion THDi | <3%(of nominal power) |
DC Injection Current | <0.5%ln |
Efficiency |
Max Efficiency | 0.976 |
Euro Efficiency | 0.97 |
MPPT Efficiency | >99% |
Equipment Protection |
Integrated | DC Reverse Polarity Protection,AC Output Overcurrent Protection,Thermal Protection,AC Output Overvoltage
Protection,AC Output Short Circuit Protection,DC Component Monitoring,Arc Fault Circuit
Interrupter(optional),Anti-islanding Protection,DC Switch,Insulation Impedance Detection,
Residual Curent Detection |
Surge Protection Level | TYPE II(DC),TYPE I(AC) |
Interface |
Communication Interface | RS485/RS232/CAN |
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
General Data |
|
Operating Temperature Range | -40℃+60℃,>45℃ Derating |
Permissible Ambient Humidity | 0-100% |
Permissible Altitude | 2000m |
Noise | ≤65 dB(A) |
Ingress Protection(IP)Rating | IP65 |
Inverter Topology | Non-Isolated |
Over Voltage Category | OVCII(DC),OVCII(AC) |
Cabinet size(W*H*D)[mm] | 527*894*294(Excluding connectors and brackets) |
Weight[kg] | 80 |
Warranty | 5Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter,More Info Please Refer to Warranty Policy |
Type Of Cooling | Intelligent air cooling |
Grid Regulation | IEC61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,
OVE-Richtlinie R25,G99,VDE-AR-N 4105 |
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 |
