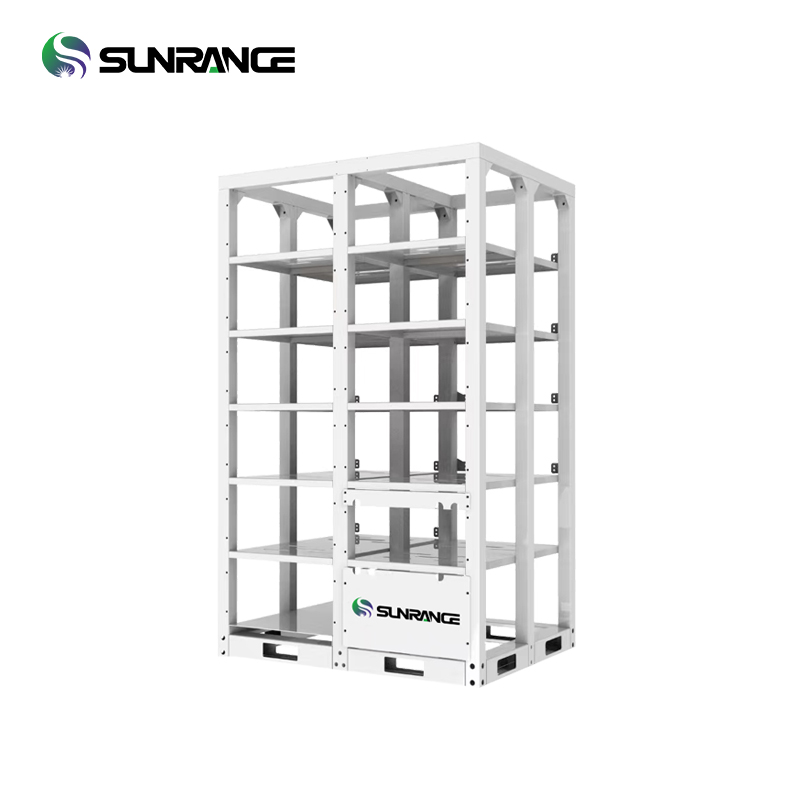

Spezifikation des Racks HV
| Model | Rack HV | Rack HV | Rack HV |
| Rack Type | LiFePO4 | LiFePO4 | LiFePO4 |

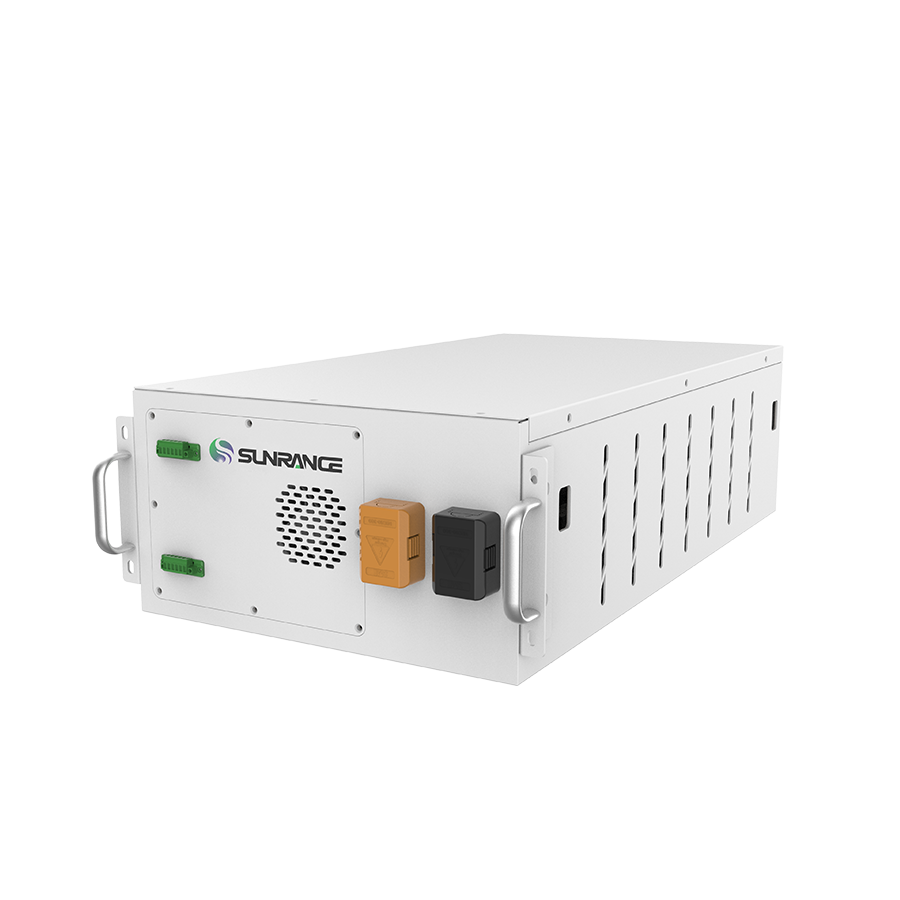

| Battery Module Type | HV51280 | HV51280 | HV51280 |
| Battery Module Quantity (Unit) | 9 | 10 | 14 |
| Nominal Energy (KWH) | 129.02 | 143.36 | 200.7 |
| Nominal Capacity (AH) | 280 | 280 | 280 |
| Norminal Voltage (V) | 460.8 | 512 | 716.8 |
| Operating Vol Range (V) | 388.8~525.6 | 432~584 | 604.8~817.6 |
| Max.Power Output (KW) | 129.02 | 143.36 | 200.7 |
| Recommend Charging Current (A) | 140 | 140 | 140 |
| Recommend Discharging Current (A) | 140 | 140 | 140 |
| Dimension(W* D* H,mm) | 805*890*1625 | 805*890*1625 | 805*890*2125 |
| Net Weight (kg) | 1239 | 1352 | 1737 |
| Module Quantity and ConfigurationWarranty | 9 Units in series

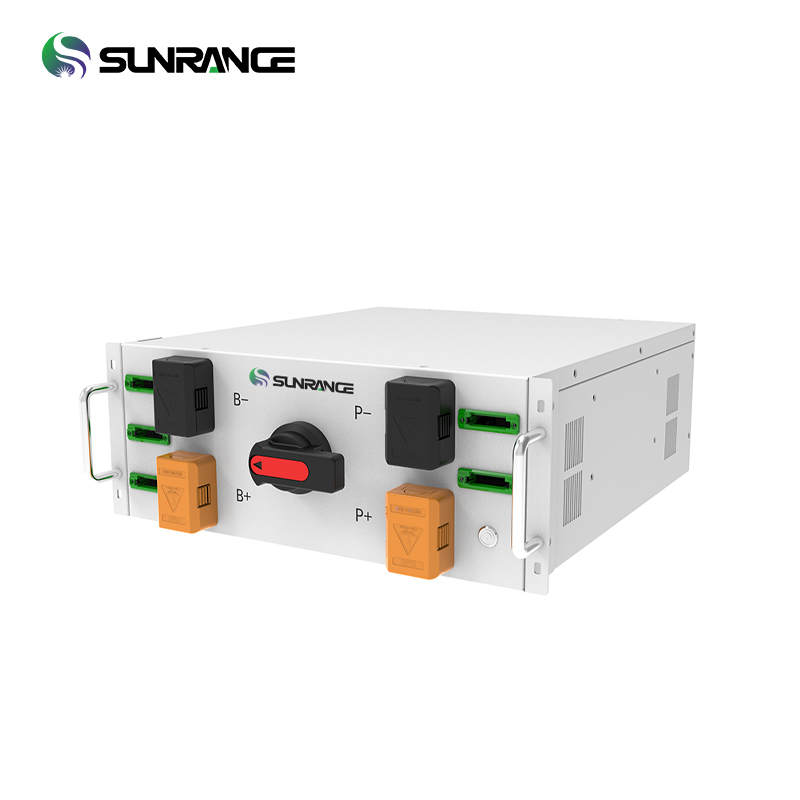

1 BMU | 10 Units in series
1 BMU | 14 Units in series
1 BMU |
