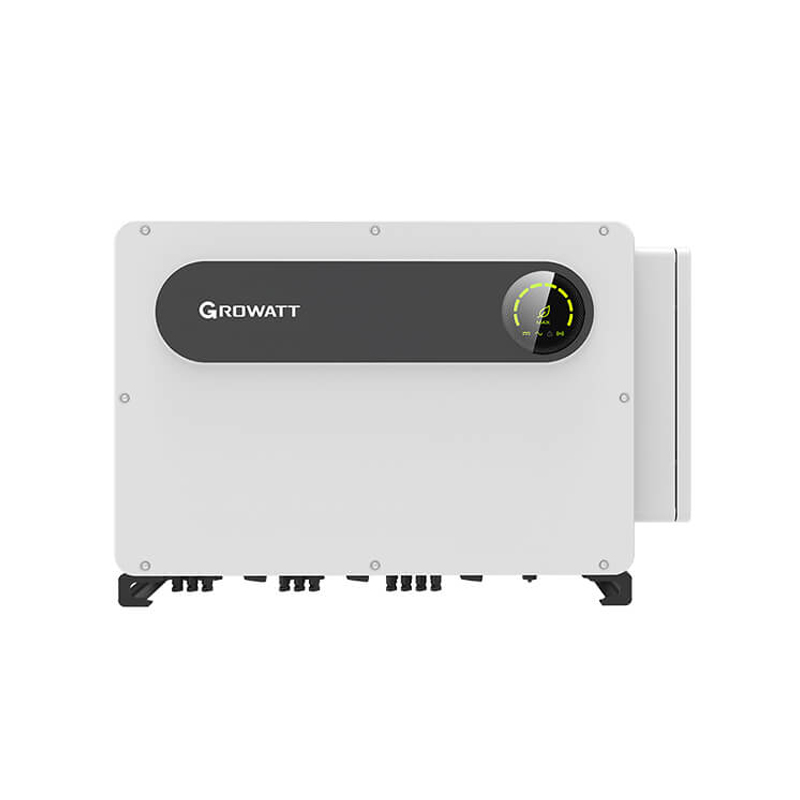

Growatt MAX 125 KTL3-X LV is a three phase solar inverter designed for residential and commercial use. As an inverter, its primary function is to convert the direct current (DC) electricity produced by solar panels into alternating current (AC) electricity that can be used to power homes and businesses. One of the main features of the Growatt MAX is its high efficiency, which allows it to maximize the power output of solar panels, even under challenging environmental conditions such as shading, dust or extreme temperature. The inverter is equipped with MPPT (maximum power point tracking) technology, which continuously monitors and adjusts the electrical load to optimize the amount of energy that can be produced by the solar panels.
The Growatt MAX also comes with a built-in data logger and WiFi connectivity, which allows users to monitor and manage their solar system’s performance remotely through a smartphone app or web portal. The app displays real-time and historical data, including energy production, consumption, and savings, making it easier for users to understand their energy usage and optimize their solar system’s performance. Additionally, the Growatt MAX has a compact and lightweight design, making it easy to install and maintain. It is also built with high-quality materials, which ensure the product’s durability and longevity.

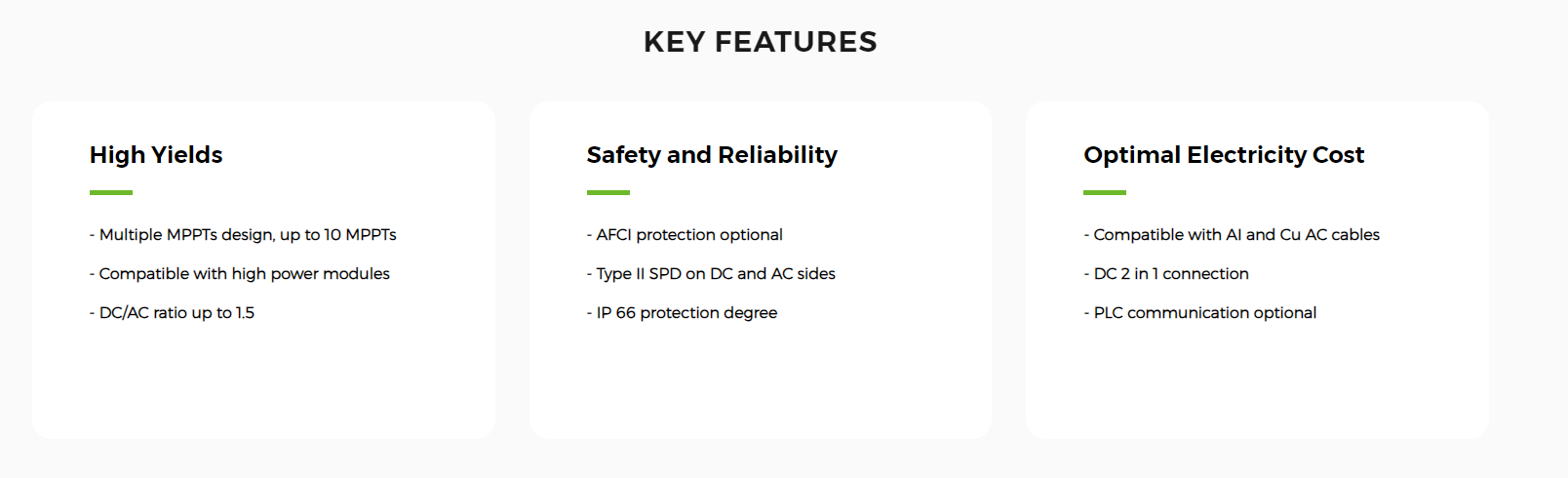

GENERAL INFORMATION

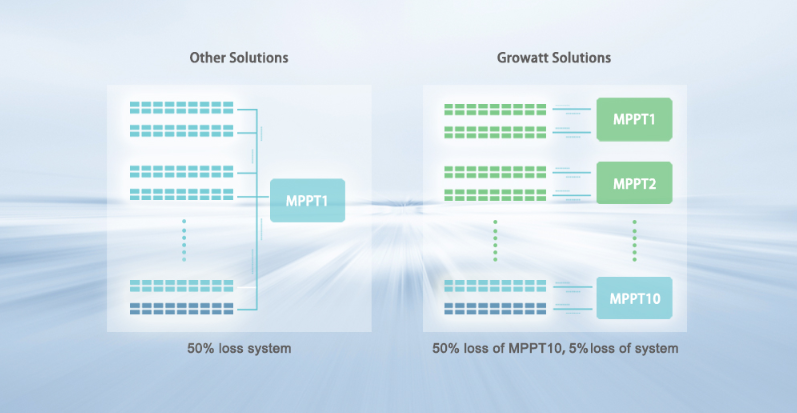

Multiple MPPTs design, up to 10 MPPTs
Compatible with high power modules
DC/AC ratio up to 1.5
AFCI protection optional
Type II SPD on DC and AC sides
IP 66 protection degree
Compatible with AI and Cu AC cables
DC 2 in 1 connection
PLC communication optional
Growatt comprehensive warranty plan
10 year warranty
Growatt inverters travel to you by insured transport. Shipments are packed with great care in such a way that the inverter arrives at its destination undamaged.

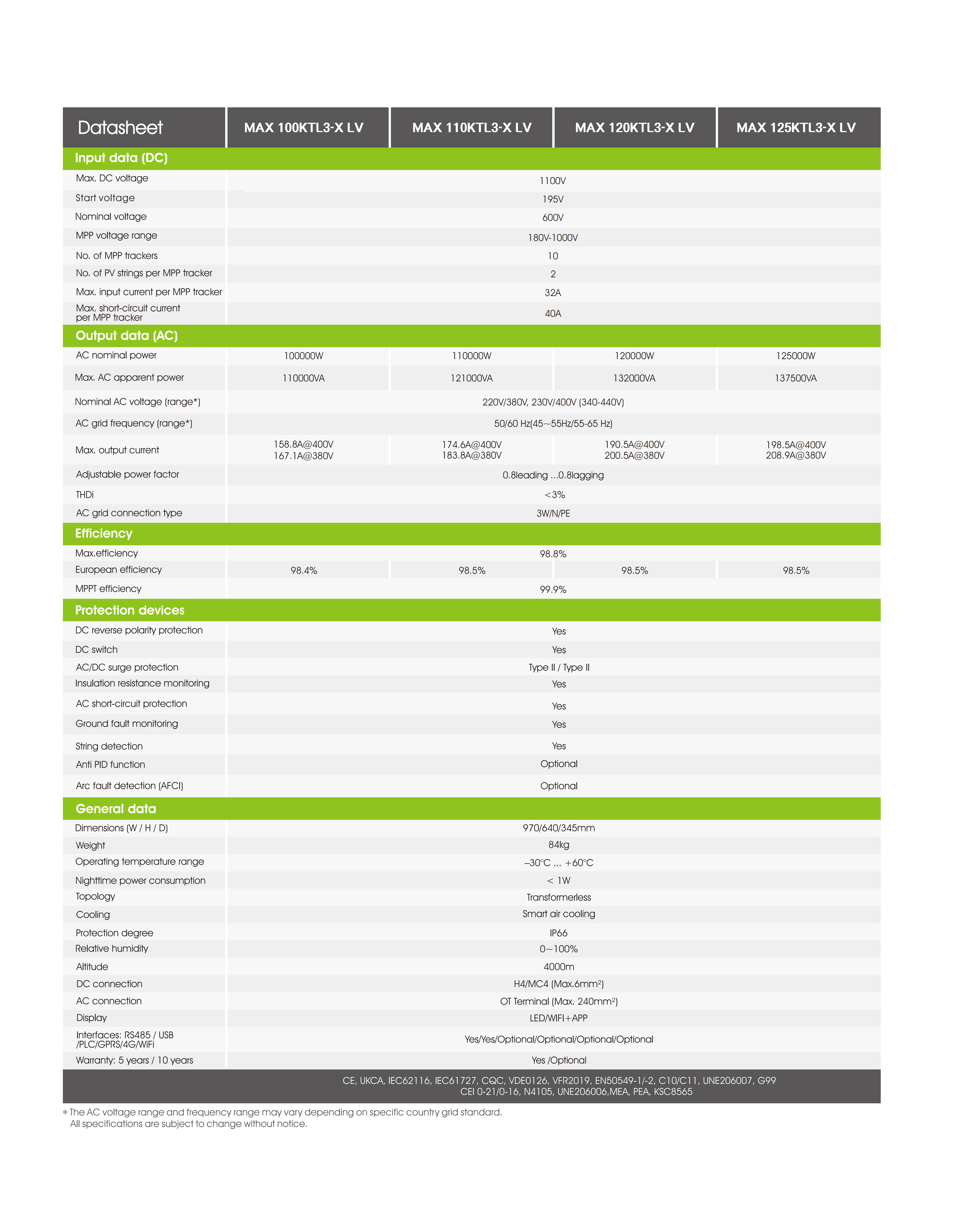

Basic specifications of inverter Growatt MAX 125 KTL3-X LV:
Max. DC voltage : 11000
Nominal Voltage [V]: 600
Max. output current [A] : 198.5
AC nominal power [W] : 125000
Dimensions (W / H / D) [mm] : 970/640/345
Weight [kg] : 84
MAX. efficiency [%] : 98.8
Protection degree: IP66
Interfaces: RS232/RS485/CAN/USB
Cooling : Smart air cooling
Topology : Transformless
Model | MAX 50KW | MAX 60KW | MAX 70KW | MAX 100KW | MAX 110KW | MAX 120KW | MAX 125KW |
Max Input Power | 50KW | 60KW | 70KW | 100KW | 110KW | 120KW | 125KW |
Max DC Input Voltage | 1100V |
Start-up Input Voltage | 250V | 250V | 250V | 195V | 195V | 195V | 195V |
Nominal Grid Voltage | 230/400V |
Nominal Frequency | 50/60Hz |
Grid Connection | Three Phase |
No. of MPP Trackers | 3 | 3 | 3 | 10 | 10 | 10 | 10 |
Max. input current per MPP tracker | 26A | 26A | 26A | 32A | 32A | 32A | 32A |

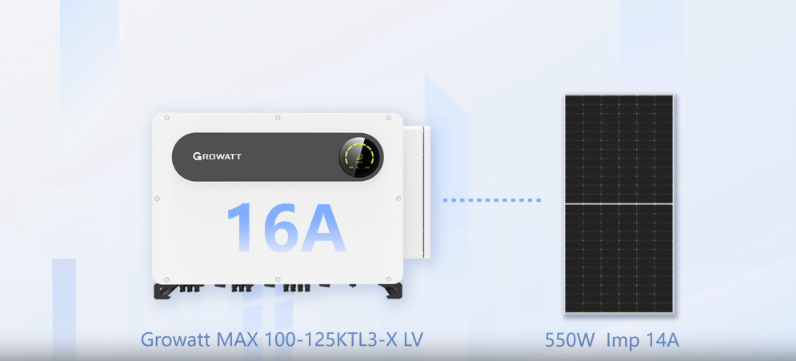

Max.short-circuit current | 16A | 32/16A | 32A | 32A/48A | 45A | 55A | 55A |
per MPP tracker |
|
|
|
|
|
|
|
Max output current | 66A | 97A | 113A | 167A | 183A | 200A | 208A |
Max Efficiency | 98.80% | 98.80% | 98.80% | 98.80% | 98.80% | 98.80% | 98.80% |
MPPT Efficiency | 99.9% |
Protection | PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc. |
Communication Interface | RS485(standard); WIFI |
Certification | IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59 |
Warranty | 5years, 10years |
Temperature Range | -25℃ to +60℃ |
DC Terminal | Waterproof Terminals |
Demension(H*W*D mm) | 650/508/281 | 650/508/281 | 650/508/281 | 970/640/345 | 970/640/345 | 970/640/345 | 970/640/345 |
Approx Weight | 52kg | 52kg | 52kg | 84kg | 84kg | 84kg | 84kg |
