SUN-5/6/8/10/12K-SG04LP3-EU - Hybrid Inverter

SUN-5/6/8/10/12K-SG04LP3-EU

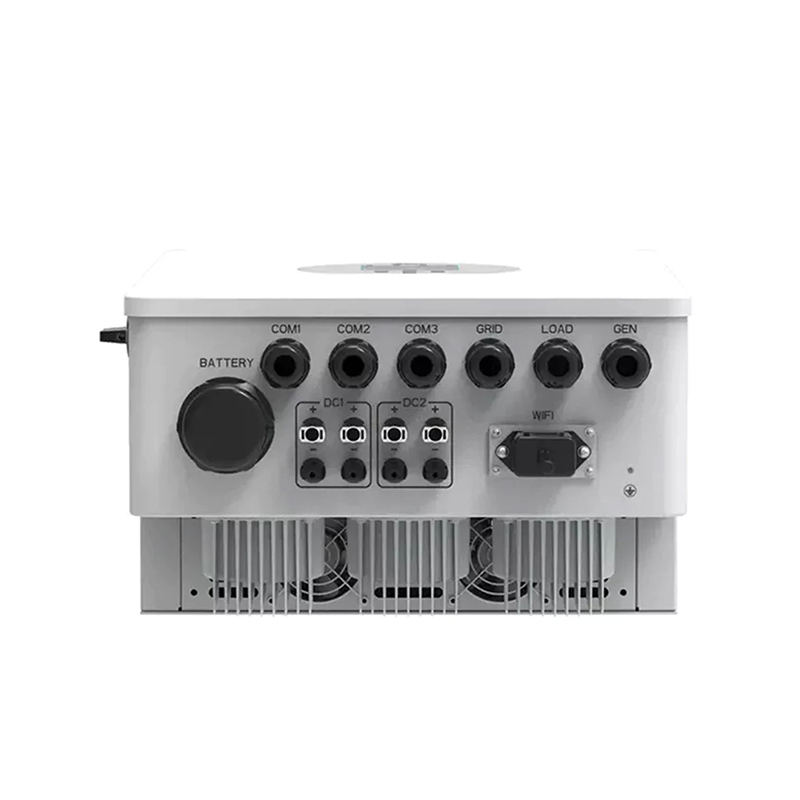

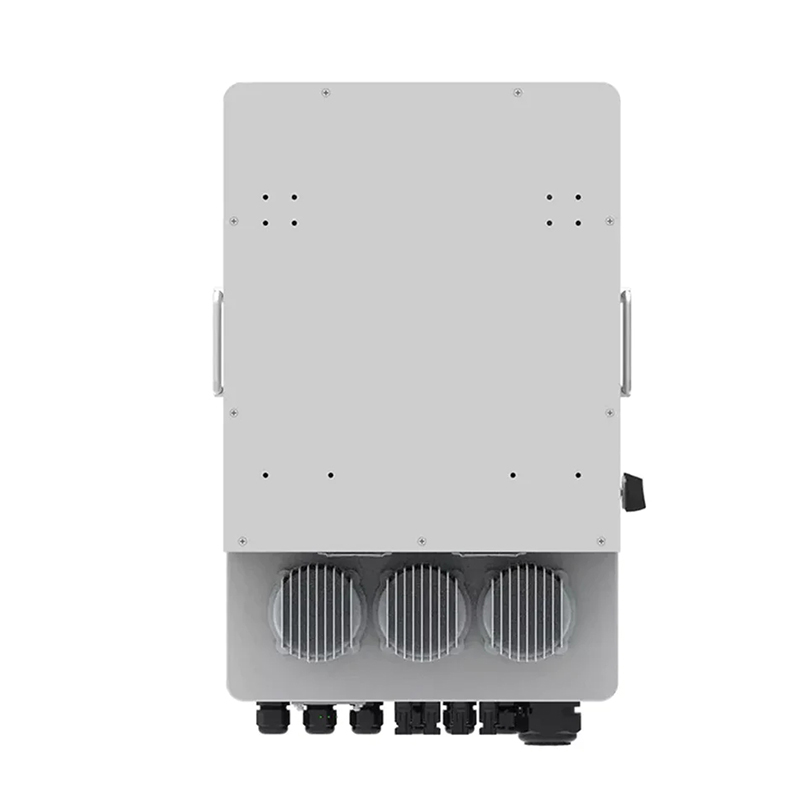

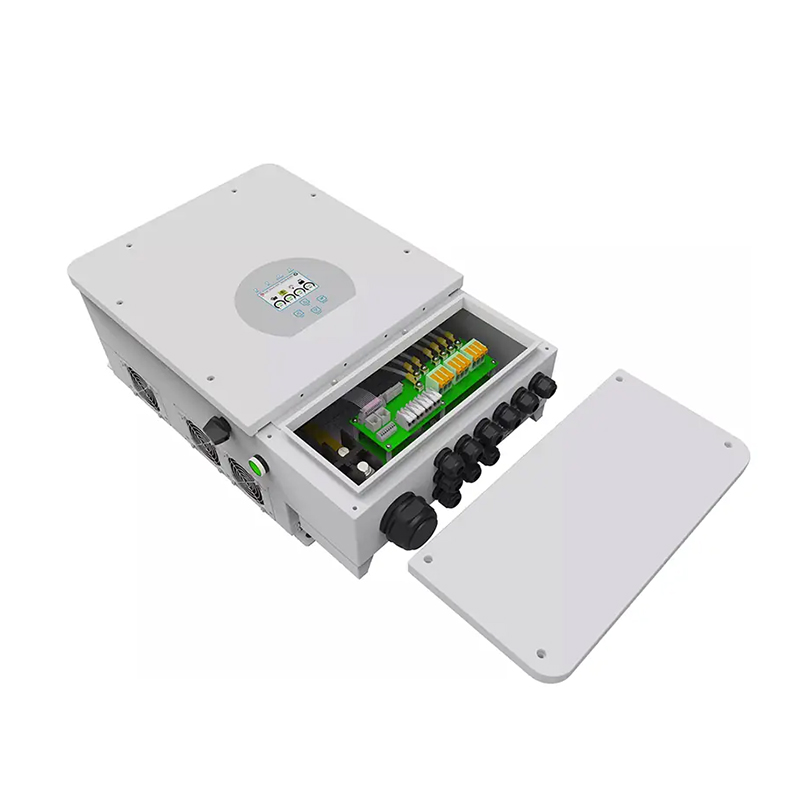

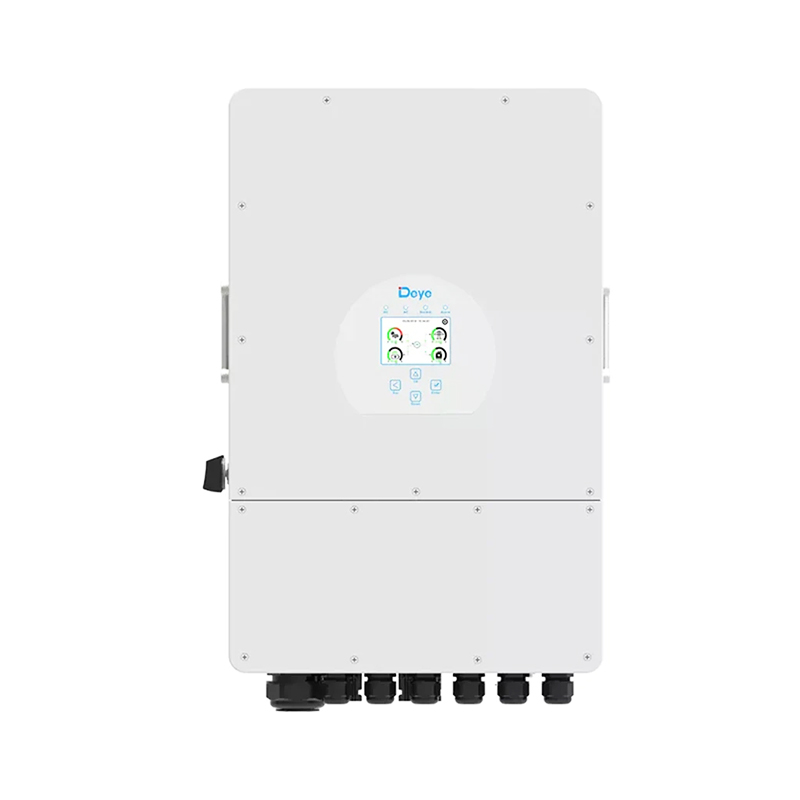

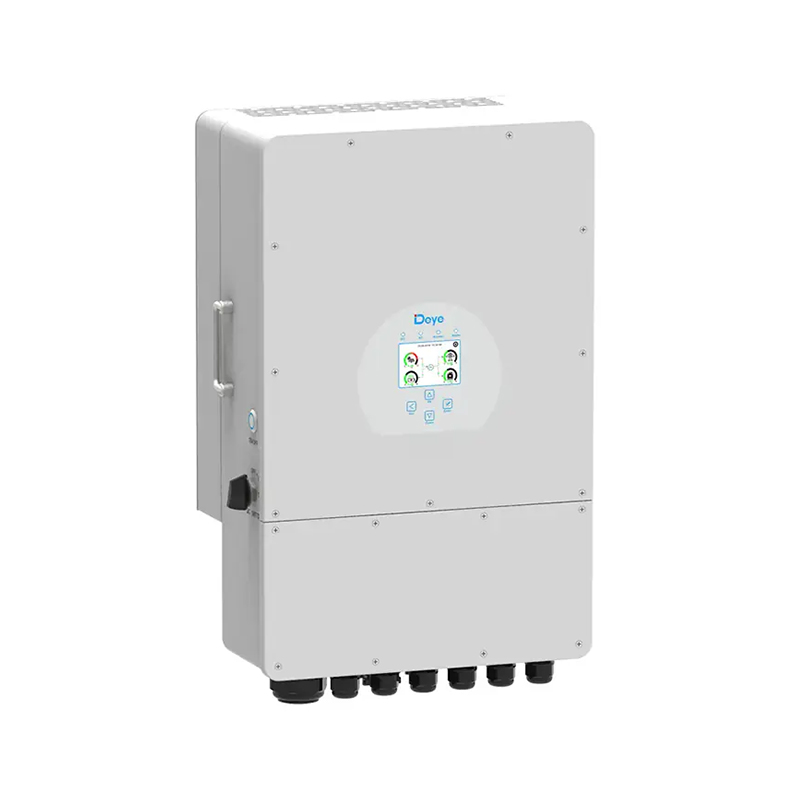

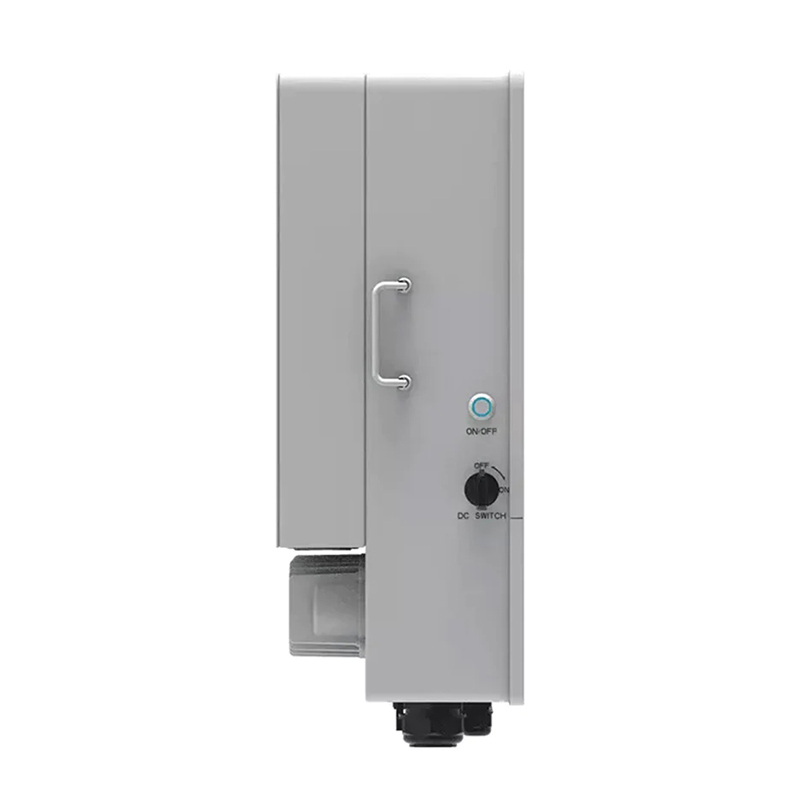

Sunrange Deye 8kW 10kW 12kW 48V Low Voltage Hybrid Energy Storage Inverter

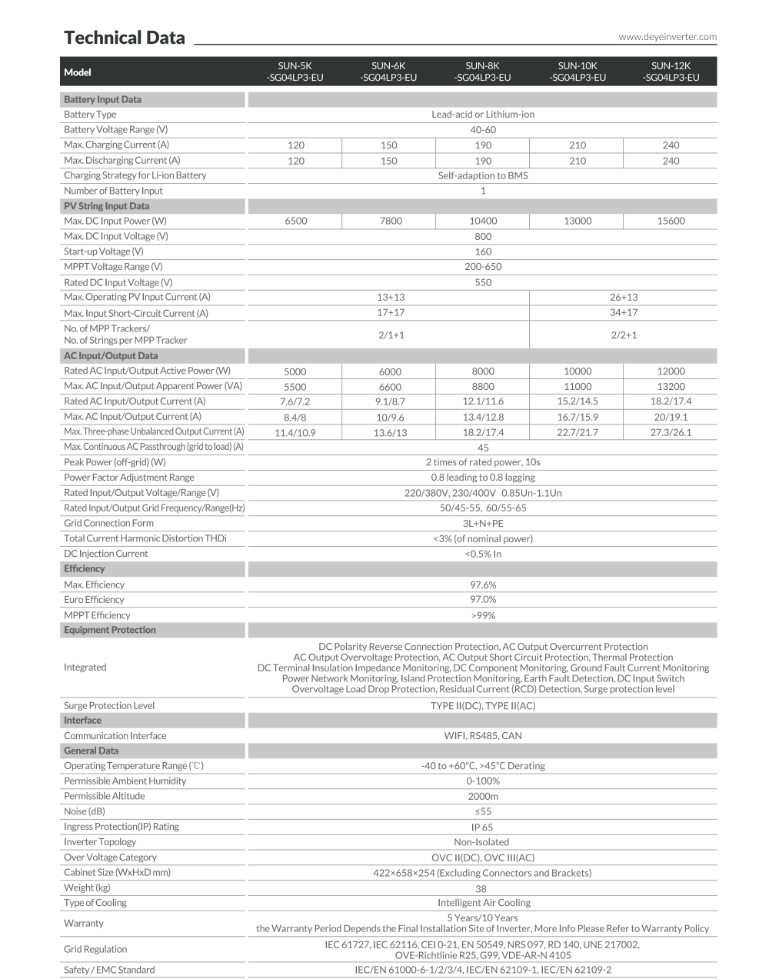

Model：	SUN-5/6/8/10/12K-SG04LP3-EU
Max. Power :	5KW/6KW/8KW/10KW/12KW
Output Voltage :	400V Three Phase 50Hz
Input Voltage :	200-650Vdc
Battery Voltage :	48Vdc
Dimension(mm) :	422×702×281
Weight(kg) :	33.6
Certification	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Warranty:	5 Years (10 Years Optional)

File Download

Product Details

Higher yields / Safe & Reliable / Smart / User-friendly

100% unbalanced output, each phase; Max. output up to 50% rated power

1. AC couple to retrofifit existing solar system

2. Max. 10 pcs parallel for on-grid and off-grid

3. operation; Support multiple batteries parallel

4. Max. charging/discharging current of 240A

5. Support storing energy from diesel generator

6. 48V low voltage battery, transformer isolation design

7. 6 time periods for battery charging/discharging
